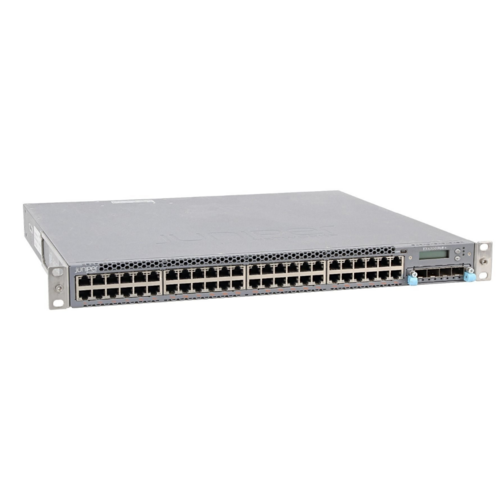

JUNIPER SWITCH EX4300-48T Rental

7500 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

JUNIPER SWITCH EX4300-48T Rental Price And Quantity

Minimum Order Quantity 1 Piece
Price 7500 INR/Piece

Product Description

Backplane	320 Gbps Virtual Chassis Interconnect To Combine Up To 10 Units As A Single Logical Device
Uplink Module Options	4-Port Dual-Mode 10GbE/1GbE Module With Pluggable SFP+/SFP Optics
Dimensions (W X H X D)	17.41 X 1.72 X 16.43 In (44.21 X 4.32 X 41.73 Cm) Desktop Installation Width Noted Above, Rack-Mount Width Is 17.5 In (44.5 Cm) Height: 1 Rack Unit (1 U)
Weight	EX4300 Switch (No Power Supply Or Fan Module): 13 Lb (5.9 Kg) EX4300 Switch (With Single Power Supply And Two Fan Modules): 16.1 Lb (7.3 Kg) 350 W AC Power Supply: 2.4 Lb (1.1 Kg) SFP+ Uplink Module: 0.44 Lb (0.2 Kg) Fan Module: 0.33 Lb (0.15 Kg)
Rack Mountable	1 Rack Unit
Hardware Specifications
Switching Engine Model	Store And Forward
DRAM	2 GB With Error Correcting Code (ECC)
Flash	2 GB
CPU	1.5 GHz Dual-Core PowerPC CPU
GbE Port Density Per System	56 (48 Host Ports + Four 40GbE Ports + Optional Fourport 1/10GbE Uplink Module)
10GbE Port Density Per System	4 (Uplink Module)
40GbE Port Density Per System	4
Packet Switching Capacities (Maximum With 64 Byte Packets)	248 Gbps (Unidirectional)/496 Gbps (Bidirectional)
Layer 2/Layer 3 Throughput (Mpps) (Maximum With 64 Byte Packets)	369 Mpps (Wire Speed)
Supported Optics	GbE SFP Optic/Connector Type: LC SFP Fiber Supporting SX (Multimode), LX (Single-Mode) 10GbE SFP+ Optic/Connector Type: 10GbE SFP+ LC Connector, SR (Multimode), USR (Multimode), LR (Single-Mode), ER (Single-Mode), LRM (Multimode), And DAC (Direct-Attach Copper) 40 GbE QSFP+ Optic/Connector Type: 40GbE QSFP+ LC Connector Type, SR (Multimode), DAC (Direct-Attach Copper) 100 GbE QSFP28 Optic Type: 100GbE QSFP SR4, LR4, DAC (Direct-Attach Copper)
Physical Layer	Time Domain Reflectometry (TDR) For Detecting Cable Breaks And Shorts Auto Medium-Dependent Interface/Medium-Dependent Interface Crossover (MDI/MDIX) Support Port Speed Downshift/Setting Maximum Advertised Speed On 10/100/1000BASE-T Ports Digital Optical Monitoring For Optical Ports
Power Options
Power Supply Rating	350 W AC Dual Load-Sharing Hot-Swappable Internal Redundant Power Supplies
PoE Budget	0 W
Maximum Current Inrush	50 Amps
Minimum Number Of PSUs Required For Fully Loaded Chassis	1 Per Switch
Environment
Operating Temperature	32 To 113 F (0 To 45 C)
Storage Temperature	-40 To 158 F (-40 To 70 C)
Relative Humidity (Operating)	10% To 85% (Noncondensing)
Relative Humidity (Non-Operating)	0% To 95% (Noncondensing)
Altitude (Operating)	Up To 10,000 Ft (3,048 M)
Altitude (Non-Operating)	Up To 16,000 Ft (4,877 M)
Cooling
Cooling Airflow	AFO (Front-To-Back Airflow)
Field-Replaceable Fans	2
Airflow	PSU-7.5 Cubic Feet Per Minute (CFM); Fan-22 CFM
Total Maximum Airflow Throughput With Two Power Supplies	59 CFM
Noise Specifications
Noise Specifications	Noise Measurements Based On Operational Tests Taken From Bystander Position (Front) And Performed At 23 C In Compliance With ISO 7779
Acoustic Noise In DBA	37.8
Safety And Compliance
Safety Certifications	UL-UL60950-1 (First Edition) C-UL To CAN/CSA 22.2 No. 60950-1 (First Edition) TUV/GS To EN 60950-1, Amendment A1-A4, A11 EN 60950-1 (2006 +A1:2009+A12:2010) Information Technology Equipment”Safety IEC 60950-1 (2005 +A1:2009) Information Technology Equipment”Safety
Electromagnetic Compatibility Certifications	FCC 47CFR Part 15 Class A EN 55022 Class A ICES-003 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 22 Class A EN 55024 EN 300386 CE
NEBS	GR-1089-Core: EMC And Electrical Safety For Network Telecommunications Equipment
Environmental	Reduction Of Hazardous Substances (ROHS) 6/6
Telco	CLEI Code
